Students will create a circuit with a microcontroller (ESP32 or Arduino) capable to blink SOS with a LED and a speaker.

They will embed simulations of LED SOS circuits and the corresponding codes using Tinkercad in their Neocities websites.

A Fritzing drawing will be add as the first image of your mobile video recording known as poster in html5 video coding in order to show your working microcontroller circuit and code.

You need to explain the code in a video recording your working microcontroller circuit. The video must be included in your neocities website but stored in an opendrive.com account using streaming mp4 address and you need to add a default image (poster) in the video containing the title of the video, e.g. ESP32- WROM32 SOS BLINK, name of the student, logo of the school available here. and your Fritzing electronic diagram. To do so you need to use GIMP to resize logo and combine layer images in one image used as poster image in your video.

You need to create different versions of Arduino codes and to explain them in your personal Neocities website:

  1. Using simple code instructions only
  2. Using variables and functions without parameters
  3. Using functions with parameters
  4. Using switch function and cases
  5. Using arrays for delays
  6. Creating Morse decoder

Remember the Arduino cheatsheet

For beginners I recommend Getting started with Arduino book by Maximo Bazi (Arduino co-Foundation)  and Programming Arduino. Getting started with skecthes by Simon Monk.

CODE EXAMPLE OF FUNCTIONS WITHOUT PARAMETERS.

Inside void S(){} you need to copy first code instructions started with the blink code corresponding to character S and inside void O(){} you need to write instructions corresponding to character O. Finally you need to call functions S(); O();S() inside the main loop function.

CODE EXAMPLE OF FUNCTIONS WITH PARAMETERS

void flash(int numFlashes, int d)
{
for (int i = 0; i < numFlashes; i ++)
{
digitalWrite(ledPin, HIGH);
delay(d);
digitalWrite(ledPin, LOW);
delay(d);
}
}

Inside loop main function you can call flash(3,200) for 3 times flash of 200 milliseconds (character O in Morse code) or flash (3,600) for Morse character S.

The minimum project is SOS + Student name in Morse code using lights and or sound. High scores if Arduino musical notes depends on the light level (LDR) or other ideas mixing light, LDR sensor and musical notes.

Students must insert a gif in their wordpress blogs and it must be shown the simulation of the circuit their names, the circuit and the code. The circuit can be also added as a regular image file (e.g. fritzing software) and the code as text.

SOS code with 3 functions

const byte ledPin = 13;

void setup()

// Use ledPin as output

pinMode(ledPin, OUTPUT)

//Create a function for short blink

void shortBlink()

// Make a single short blin

digitalWrite(ledPin, HIGH)

delay(200)

digitalWrite(ledPin, LOW)

delay(200)

void longBlink()

// Make a single long blink

digitalWrite(ledPin, HIGH)

delay(600)

digitalWrite(ledPin, LOW)

delay(200);

}



void morseBlink(char character) {

// Translate character to Morse code

switch(character){

case ‘s‘:

shortBlink();

shortBlink();

shortBlink();

break;

case ‘o‘:

longBlink();

longBlink();

longBlink();

break;

}

}

void loop() {

// Start blinking SOS

morseBlink(‘s‘);

morseBlink(‘o‘);

morseBlink(‘s’);

}

According to the wikipedia article on Morse Code:
A ‘dash’ should be three times the length of a ‘dot’.
The time between dots or dashes in a letter should be that same as the time for a dot.
The time between letters should be three dot times.int ledPin = 13;

const int DOT = 150;
const int DASH = DOT * 3;

int durations[] = {DOT, DOT, DOT, DASH, DASH, DASH, DOT, DOT, DOT};

void setup() {
pinMode(ledPin, OUTPUT);
}

void loop() {
for (int i = 0; i < 9; i++) {
flash(durations[i]);
if (i == 2 || i == 5)
delay(DASH – DOT); // inter-letter additional time
}
delay(1000);
}

void flash(int duration) {

digitalWrite(ledPin, HIGH);
delay(duration);
digitalWrite(ledPin, LOW);
delay(DOT);
}

//Another SOS version

int dotDur = 125;

int dashDur = dotDur * 3;

int wordPause = dotDur * 7;

void setup() { // initialize the digital pin as an output. // Pin 13 has an LED connected on most Arduino boards: pinMode(13, OUTPUT); }

void loop() {

dot(dotDur); dot(dotDur); dot(dashDur); dash(dotDur); dash(dotDur); dash(dashDur); dot(dotDur); dot(dotDur); dot(wordPause); }

void dash(int pauseDur) { digitalWrite(13, HIGH); // set the LED on delay(dashDur); digitalWrite(13, LOW); // set the LED off delay(pauseDur); }

void dot(int pauseDur) { digitalWrite(13, HIGH); // set the LED on delay(dotDur); // wait for a second digitalWrite(13, LOW); // set the LED off delay(pauseDur); }
http://www.qsl.net/eb8bev/MORSE.GIF

MORSE CODE: Characters and numbers

// Morse code for blinking a LED
int ledPin = 13;
int dotDelay = 200;

char* letters[] = {
  ".-", "-...", "-.-.", "-..", ".", "..-.", "--.", "....", "..",    // A-I
  ".---", "-.-", ".-..", "--", "-.", "---", ".--.", "--.-", ".-.",  // J-R
  "...", "-", "..-", "...-", ".--", "-..-", "-.--", "--.."          // S-Z
};

char* numbers[] = {
  "-----", ".----", "..---", "...--", "....-", ".....", "-....", "--...", "---..", "----."};

void setup(){
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop(){
  char ch;
  if (Serial.available() > 0){
    ch = Serial.read();
    if (ch >= 'a' && ch <= 'z')
    {
      flashSequence(letters[ch - 'a']);
    }
    else if (ch >= 'A' && ch <= 'Z')
    {
      flashSequence(letters[ch - 'A']);
    }
    else if (ch >= '0' && ch <= '9')
    {
      flashSequence(numbers[ch - '0']);
    }
    else if (ch == ' ')
    {
      delay(dotDelay * 4);  // gap between words
    }
  }
}

void flashSequence(char* sequence){
  int i = 0;
  while (sequence[i] != NULL)
  {
    flashDotOrDash(sequence[i]);
    i++;
  }
  delay(dotDelay * 3);    // gap between letters
}

void flashDotOrDash(char dotOrDash){
  digitalWrite(ledPin, HIGH);
  if (dotOrDash == '.')
  {
    delay(dotDelay);
  }
  else // must be a dash
  {
    delay(dotDelay * 3);
  }
  digitalWrite(ledPin, LOW);
  delay(dotDelay); // gap between flashes
}

Morse decode

Morse project with vibration motor

const int motorPin = 3;

void setup(){
pinMode(motorPin, OUTPUT);
}

void loop(){
digitalWrite(motorPin, HIGH);
delay(300);
digitalWrite(motorPin, LOW);
delay(300);
digitalWrite(motorPin, HIGH);
delay(300);
digitalWrite(motorPin, LOW);
delay(300);
digitalWrite(motorPin, HIGH);
delay(300);
digitalWrite(motorPin, LOW);
delay(300);
digitalWrite(motorPin, HIGH);
delay(150);
digitalWrite(motorPin, LOW);
delay(150);
//.... Review code

}

Vibration motor depending on distance

delay(distance) duration of vibration
map distance vs vibration voltage
Morse code

// defines pins numbers
const int trigPin = 9;
const int echoPin = 10;
const int buzzer = 11;
const int ledPin = 13;
// defines variables
long duration;
int distance;
int safetyDistance;
void setup() {
pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output
pinMode(echoPin, INPUT); // Sets the echoPin as an Input
pinMode(buzzer, OUTPUT);
pinMode(ledPin, OUTPUT);
Serial.begin(9600); // Starts the serial communication
}
void loop() {
// Clears the trigPin
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
// Sets the trigPin on HIGH state for 10 micro seconds
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
// Reads the echoPin, returns the sound wave travel time in microseconds
duration = pulseIn(echoPin, HIGH);
// Calculating the distance
distance= duration*0.034/2;
safetyDistance = distance;
if (safetyDistance <= 5){
digitalWrite(buzzer, HIGH);
digitalWrite(ledPin, HIGH);
}
else{
digitalWrite(buzzer, LOW);
digitalWrite(ledPin, LOW);
}
// Prints the distance on the Serial Monitor
Serial.print("Distance: ");
Serial.println(distance);
}

VIBRATION MOTORS FOR MORSE CODE

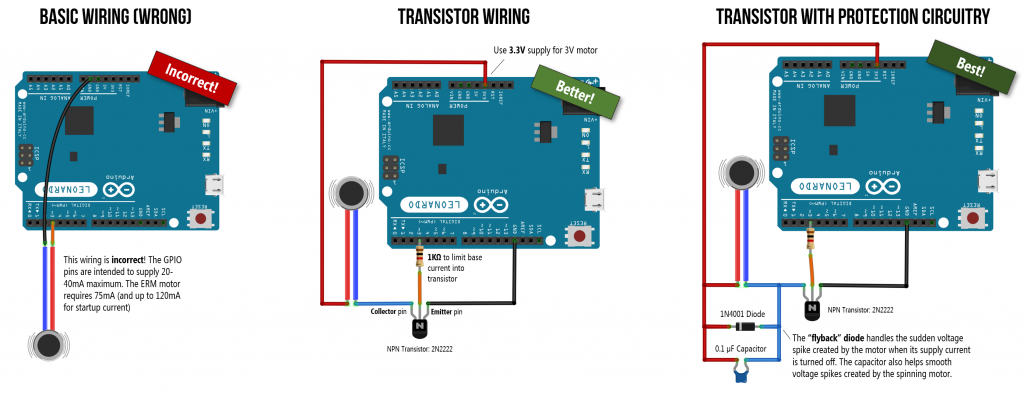

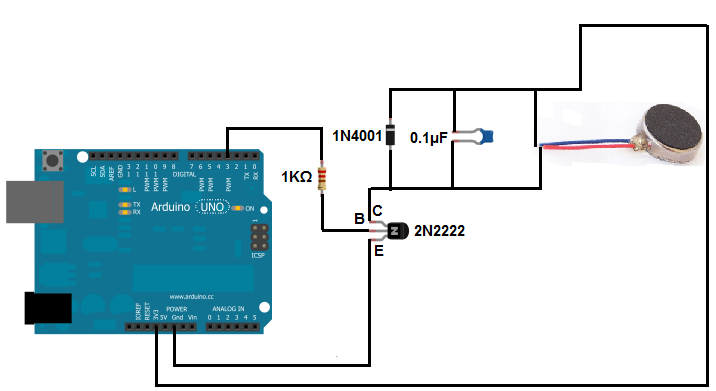

Three example wirings for hooking up ERM motors to your Arduino. The incorrect wiring on the left directly connects the ERM to the GPIO Pin 3 (using a similar wiring as we did with LEDs). This is wrong and could damage your Arduino. GPIO pins can only supply up to 40mA of current but the ERM motor requires 75mA with a startup current of up to 120mA. The other two wirings use transistors as switches to connect the ERM motors to the 3.3V supply pins, which are capable of supplying 150mA. You can right-click on this image and select “Open Image in a New Tab” to enlarge. See also this “How to Build a Vibration Motor Circuit” by Learning about Electronics.
