LDR control LED-RGB & speaker

CONTROLLING A LED AND A SPEAKER WITH LDR

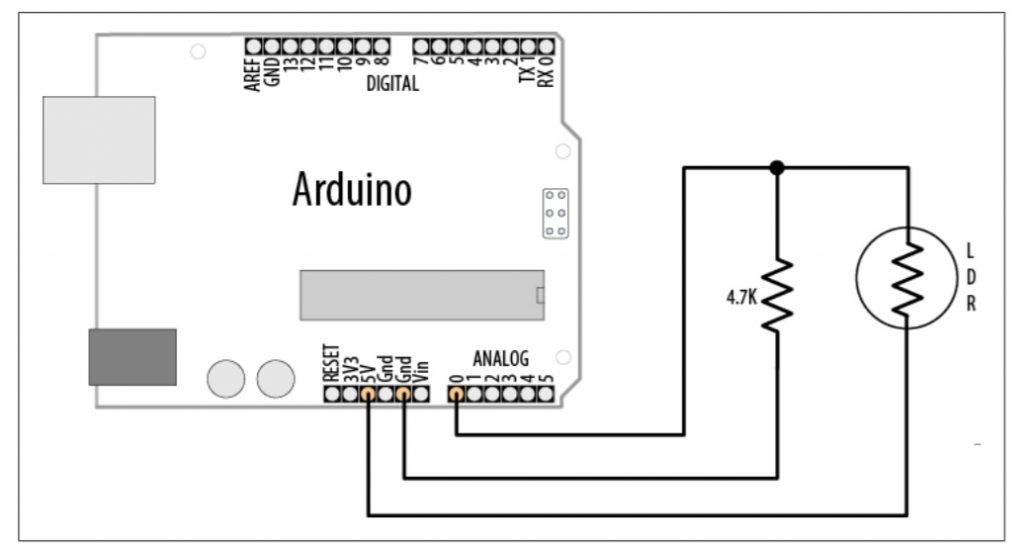

CODE LDR CONTROL LED

const int ledPin = 13; // LED connected to digital pin 13
const int sensorPin = 0; // connect sensor to analog input 0
// the next two lines set the min and max delay between blinks
const int minDuration = 100; // minimum wait between blinks
const int maxDuration = 1000; // maximum wait between blinks
void setup(){
pinMode(ledPin, OUTPUT); // enable output on the led pin
}
void loop(){
int rate = analogRead(sensorPin); // read the analog input
// the next line scales the blink rate between the min and max values
rate = map(rate, 200,800,minDuration, maxDuration); // convert to blink rate
digitalWrite(ledPin, HIGH); // set the LED on
delay(rate); // wait duration dependent on light level
digitalWrite(ledPin, LOW); // set the LED off
delay(rate);
}

LDR CONTROL A SPEAKER

Code:

const int ledPin = 13; // LED connected to digital pin 13

const int sensorPin = 0; // connect sensor to analog input 0

// the next two lines set the min and max delay between blinks

const int minDuration = 100; // minimum wait between blinks

const int maxDuration = 1000; // maximum wait between blinks

void setup(){

pinMode(ledPin, OUTPUT); // enable output on the led pin

Serial.begin(9600); // initialize Serial

}

void loop(){

int rate = analogRead(sensorPin); // read the analog input

// the next line scales the blink rate between the min and max values

rate = map(rate, 200,800,minDuration, maxDuration); // convert to blink rate

Serial.println(rate); // print rate to serial monitor

digitalWrite(ledPin, HIGH); // set the LED on

delay(rate); // wait duration dependent on light level

digitalWrite(ledPin, LOW); // set the LED off

delay(rate);

}

SPEAKER and Tone

Use the Arduino tone function. This sketch plays a tone with the frequency set by a

variable resistor (or other sensor) connected to analog input 0 (see Figure 9-3):

/**Tone sketch

Plays tones through a speaker on digital pin 9 frequency determined by values read from analog port*/

const int speakerPin = 9; // connect speaker to pin 9

const int pitchPin = 0; // pot that will determine the frequency of the tone

void setup(){}

void loop(){

int sensor0Reading = analogRead(pitchPin); // read input to set frequency

// map the analog readings to a meaningful range

int frequency = map(sensor0Reading, 0, 1023, 100,5000); //100Hz to 5kHz

int duration = 250; // how long the tone lasts

tone(speakerPin, frequency, duration); // play the tone

delay(1000); //pause one second

}

The light intensity received in a LDR (light dependent resistor) controlled intensity in a LED-RGB (LED with red, green and blue colours). Arduino is the controller.

LEDRGBLDR

Source code:

int LDRvalue = 1;
int RedLED = 9;
int GreenLED=10;
int BlueLED=11;
int pinLDR = 1;
//RGB LED uses 3 outputs to control 3 basic colours
void setup()
{
pinMode(RedLED, OUTPUT);
pinMode(GreenLED, OUTPUT);
pinMode(BlueLED, OUTPUT);
analogReference(EXTERNAL);
//Pins are outputs
}
void loop()
{
LDRvalue = analogRead(pinLDR);
if(LDRvalue >= 1023)
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 0);
digitalWrite(BlueLED, 0);
// Value corresponds to Colour Intensity
}
else if((LDRvalue >= 959) & (LDRvalue < 1023))
{
digitalWrite(RedLED, 255);
digitalWrite(GreenLED, 0);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 895) & (LDRvalue < 959))
{
digitalWrite(RedLED, 255);
digitalWrite(GreenLED, 128);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 831) & (LDRvalue < 895))
{
digitalWrite(RedLED, 255);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 767) & (LDRvalue < 831))
{
digitalWrite(RedLED, 255);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 128);
}
else if((LDRvalue >= 703) & (LDRvalue < 767))
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 255);
}
else if((LDRvalue >= 639) & (LDRvalue < 703))
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 128);
digitalWrite(BlueLED, 255);
}
else if((LDRvalue >= 575) & (LDRvalue < 639))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 128);
digitalWrite(BlueLED, 255);
}
else if((LDRvalue >= 511) & (LDRvalue < 575))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 0);
digitalWrite(BlueLED, 255);
}
else if((LDRvalue >= 447) & (LDRvalue < 511))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 0);
digitalWrite(BlueLED, 128);
}
else if((LDRvalue >= 383) & (LDRvalue < 447))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 128);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 319) & (LDRvalue < 383))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 255) & (LDRvalue < 319))
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 0);
}
else if((LDRvalue >= 191) & (LDRvalue < 255))
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 128);
}
else if((LDRvalue >= 127) & (LDRvalue < 191))
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 255);
digitalWrite(BlueLED, 128);
}
else if((LDRvalue >= 63) & (LDRvalue < 127))
{
digitalWrite(RedLED, 128);
digitalWrite(GreenLED, 128);
digitalWrite(BlueLED, 128);
}
else if((LDRvalue >=0) & (LDRvalue < 63))
{
digitalWrite(RedLED, 55);
digitalWrite(GreenLED, 55);
digitalWrite(BlueLED, 55);
}
else
{
digitalWrite(RedLED, 0);
digitalWrite(GreenLED, 0);
digitalWrite(BlueLED, 0);
}

}
void color(int red, int green, int blue)

{
analogWrite(RedLED, 255-red);
analogWrite(GreenLED, 255-green);
analogWrite(BlueLED, 255-blue);
// The conditional if-else structure controls colour corresponding to light intensity.
}

 /*

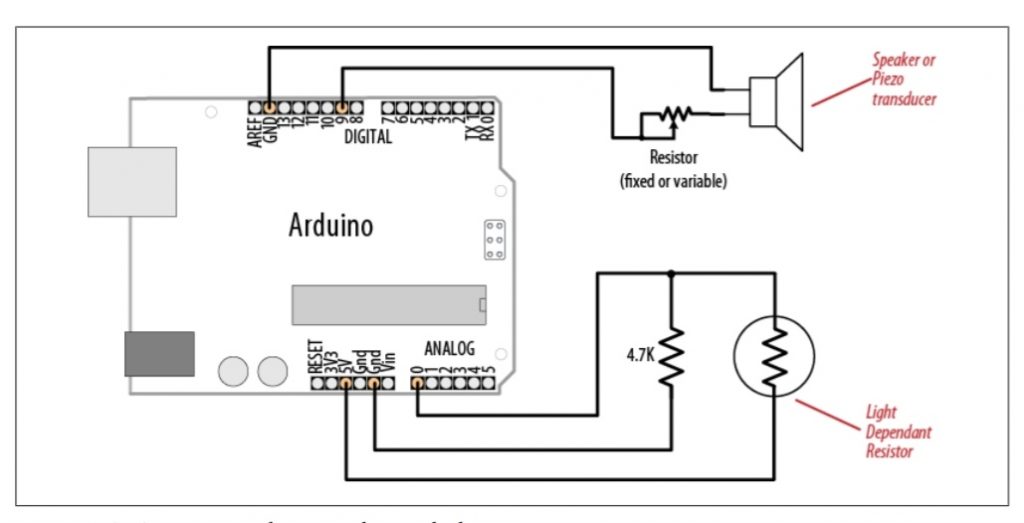

 * Speaker sketch with photoresistor

 */

const int outputPin = 9; // Speaker connected to digital pin 9

const int sensorPin = A0; // connect sensor to analog input 0

const int low = 200;

const int high = 800;

const int minDuration = 1; // 1 ms on, 1 ms off (500 Hz)

const int maxDuration = 10; // 10 ms on, 10 ms off (50 Hz)

void setup()

{

 pinMode(outputPin, OUTPUT); // enable output on the led pin

}

void loop() {

 int sensorReading = analogRead(sensorPin); // read the analog input

 int delayval = map(sensorReading, low, high, minDuration, maxDuration);

 delayval = constrain(delayval, minDuration, maxDuration);

 digitalWrite(outputPin, HIGH); // set the pin on

 delay(delayval); // delay is dependent on light level

 digitalWrite(outputPin, LOW); // set the pin off

 delay(delayval);

}

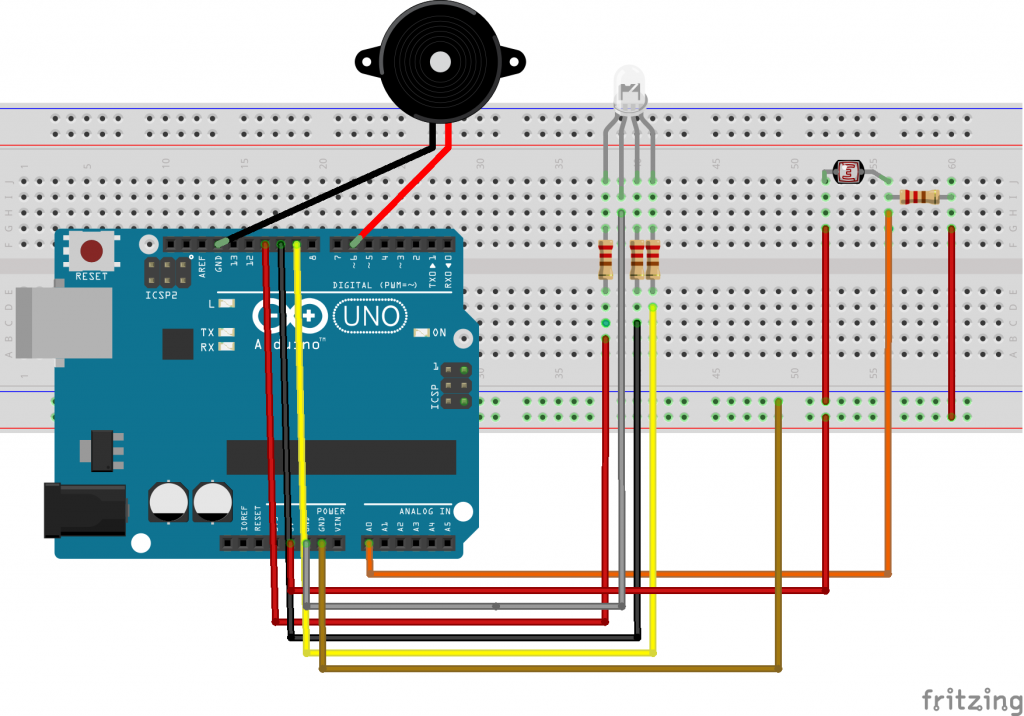

//LDR controlling RGB LED and buzzer

int valueLDR, freq;

int ledRed=9;

int ledGreen=10;

int ledBlue=11;

int pinLDR=A0;

int speaker=6;



void setup() {

// put your setup code here, to run once:

pinMode(ledRed, OUTPUT);

pinMode(ledGreen, OUTPUT);

pinMode(ledBlue, OUTPUT);

//analogReference(EXTERNAL);

Serial.begin(9600);

}



void loop() {

Serial.println(valueLDR);

delay(1);

// put your main code here, to run repeatedly:

valueLDR=analogRead(pinLDR);



int Red = map(valueLDR,50,500,0,255);

int Green = map(valueLDR,50,500,255,0);

int Blue = map(valueLDR,50,500,0,128);

int freq = map(valueLDR,50,500,261,494);

analogWrite(ledRed,Red);

analogWrite(ledGreen,Green);

analogWrite(ledBlue,Blue);

tone(speaker,freq,10);

}

LDR and neopixel simulation

LDR and RGBLED simulation

https://www.tinkercad.com/things/eoNwqEgf5Hq-copy-of-led-rgb-ldr
