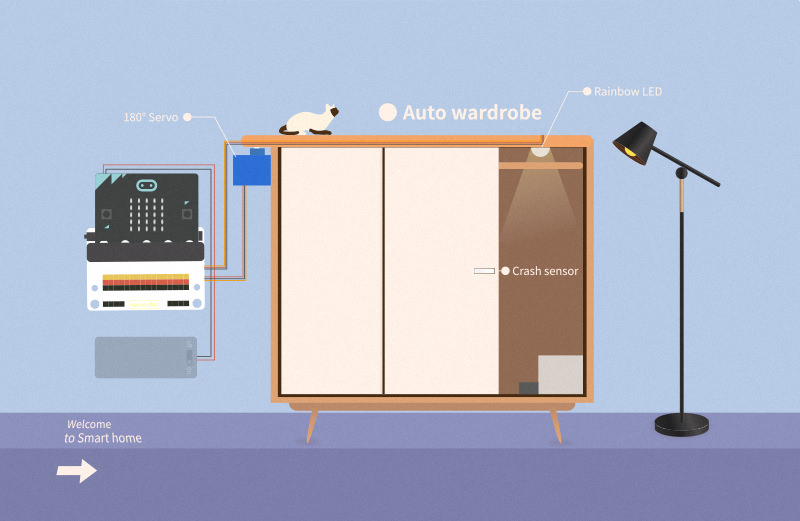

6. case 04 Smart Wardrobe
6.1. Goal
- Make an auto window.
6.2. Materials
- 1 x Smart home Kit
- 1 x corrugated board
6.3. Background
What is an auto window ?
- Noise pollution is a common problem in our life. When the value of noise higher than 70dB, it is will impact our health. We will design a smart window and door using micro:bit.
Auto window operation
- Using micro:bit detect wether the the value of noise higher than 70dB and control servo to closing the door and the window.
6.4. Practical operation
Materials: corrugated board and cutter
Build as below picture：

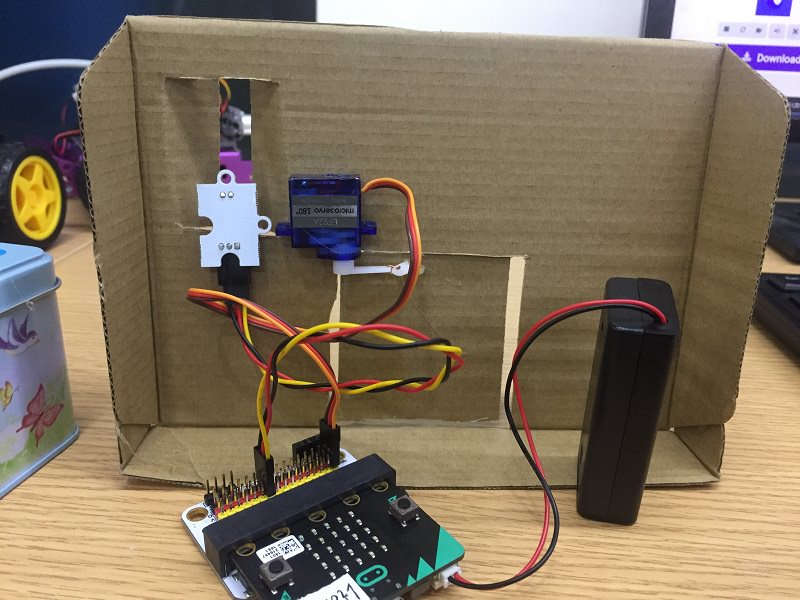

Front side：

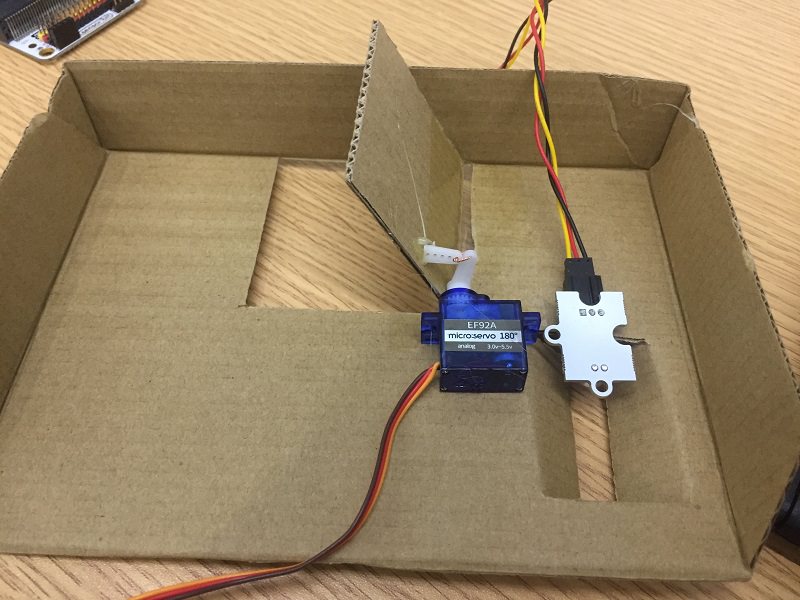

Back side：
Paste devices as below piture:

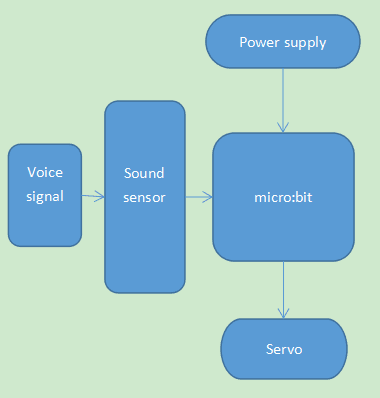

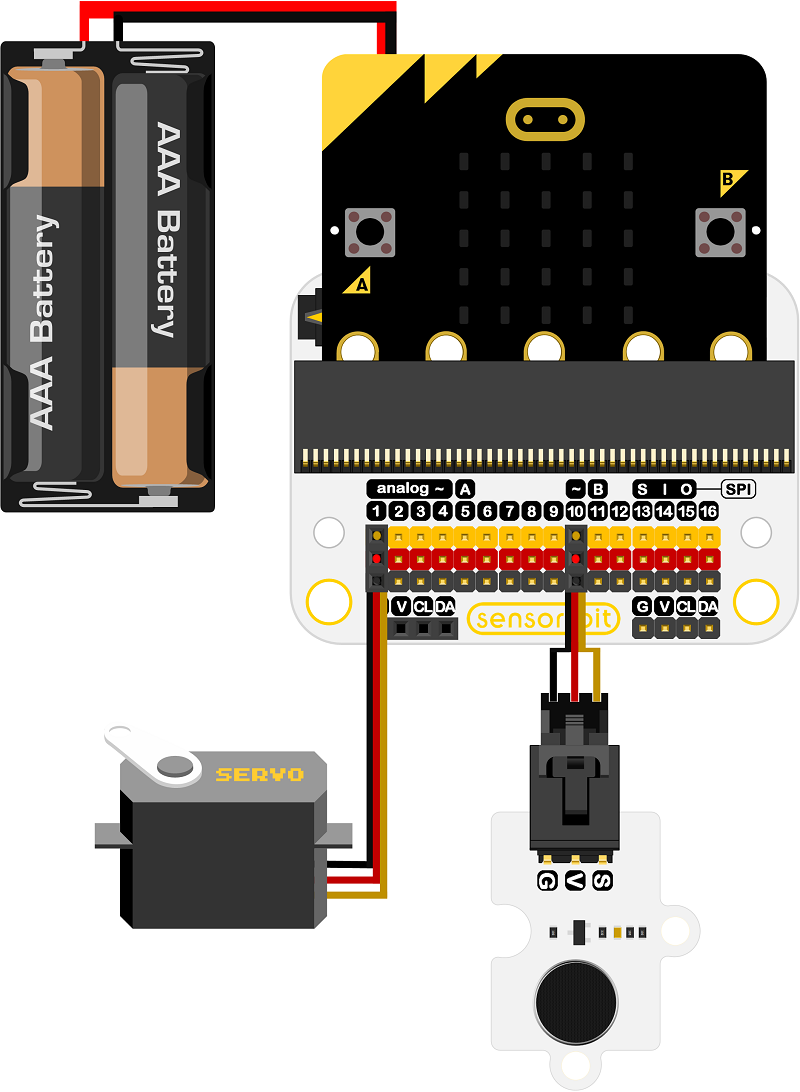

6.5. Hardware connect
6.7. Programming
Step 1

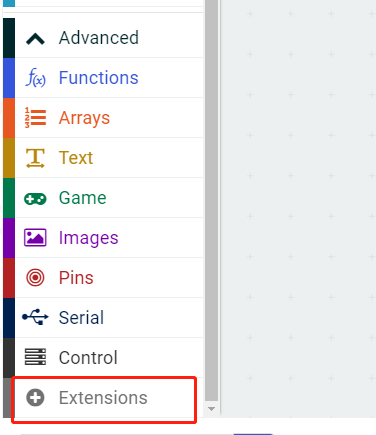

Go to MakeCode page, click Advanced in the code block and click on Extensions.

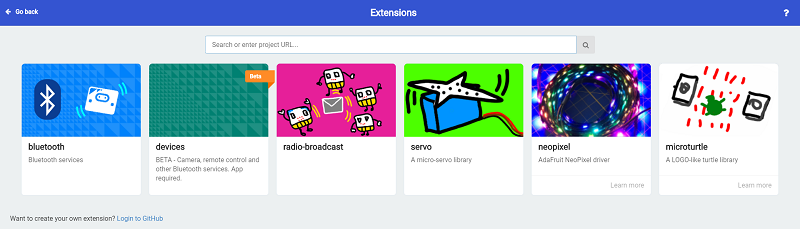

We need to add a new codebase for programming of smart home. Finding “Add Package” in the bottom of code block and click it. Then a message box will show up, search “smart home”， and download this new codebase.
Note：If there is a hint says some codebase will be deleted because of incompatibility. Don’t worry. You could go ahead as the hint or build a new item in item menu bar.
Step 2
Drag on start on from Basic, snap into servo write pin, set P1 to 0.
Step 3
Snap set item to into forever, assignment value of noise to noise variables.
Step 4
If value of noise > 70dB, snap into servo write pin,set P1 to 0 and the window be closed.
Step 5
If value of noise < 70dB，snap into servo write pin,set P1 to 100 and the window be opened.

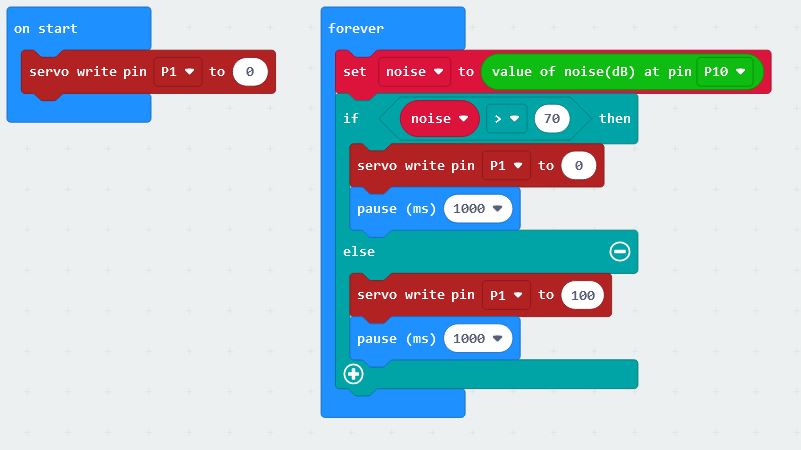

Programming
Make code：https://makecode.microbit.org/_Trh6x75hYcAT
You also could directly download program visit website as below:
6.8. Result
micro:bit driving servo open the window when value of noise > 70dB.

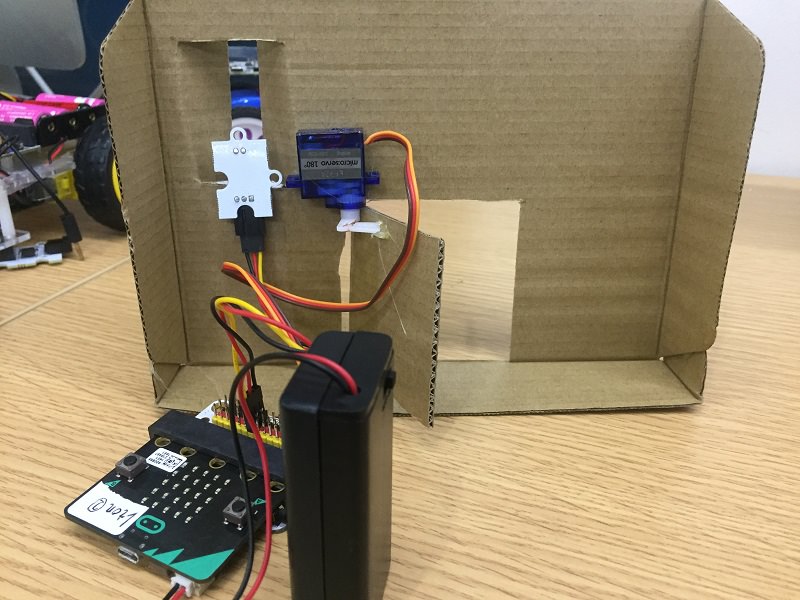

Front side：
Back side：
6.9. Think
How to know wether open the window on room temperature.
