What is smart wardrobe

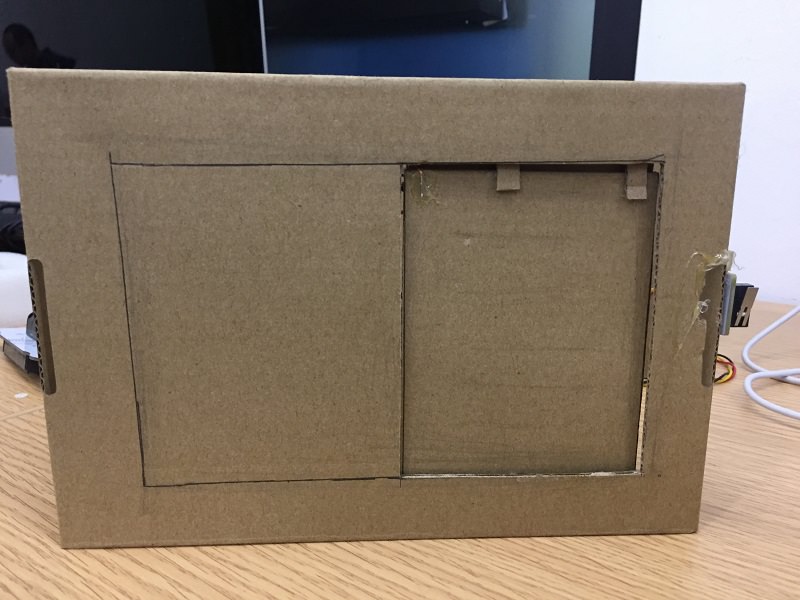

• Smart wardrobe could automatically open and let people take cloth. A slight push and the door open.At the same time, wardrobe door was setted low noise, it will not disturb sleep.

Smart wardrobe operation

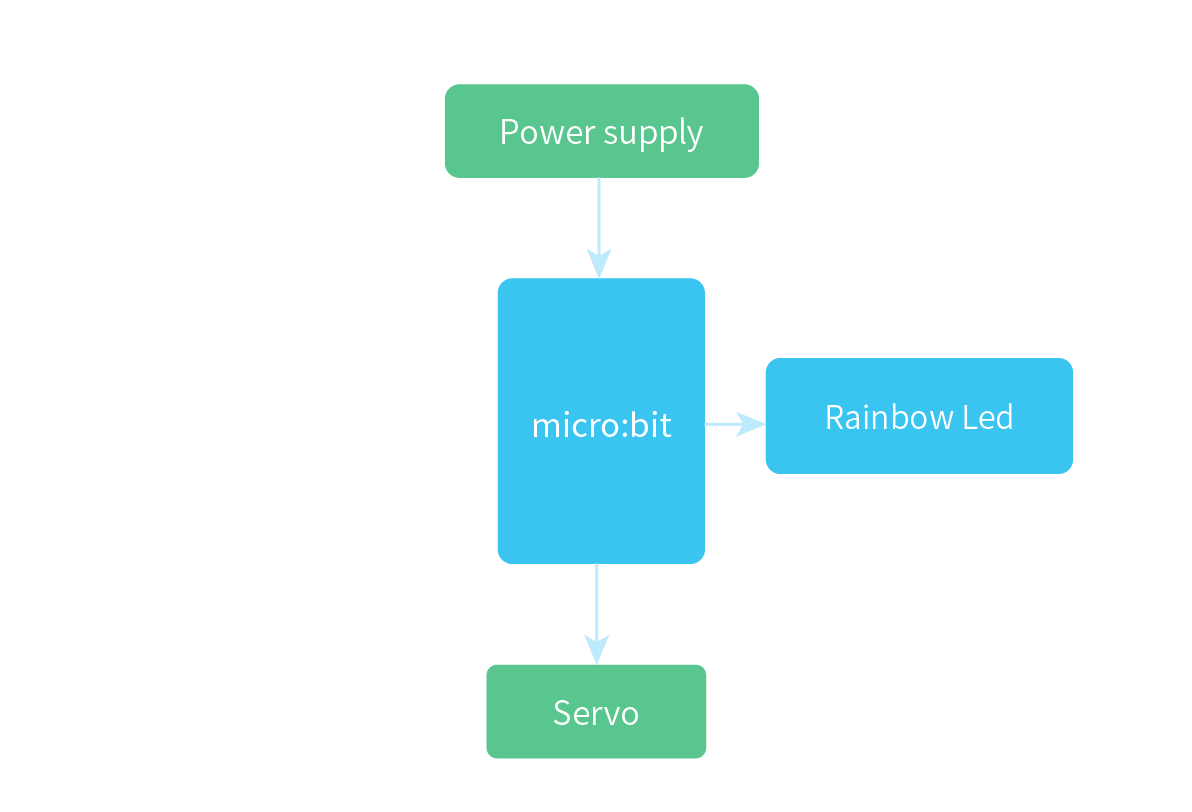

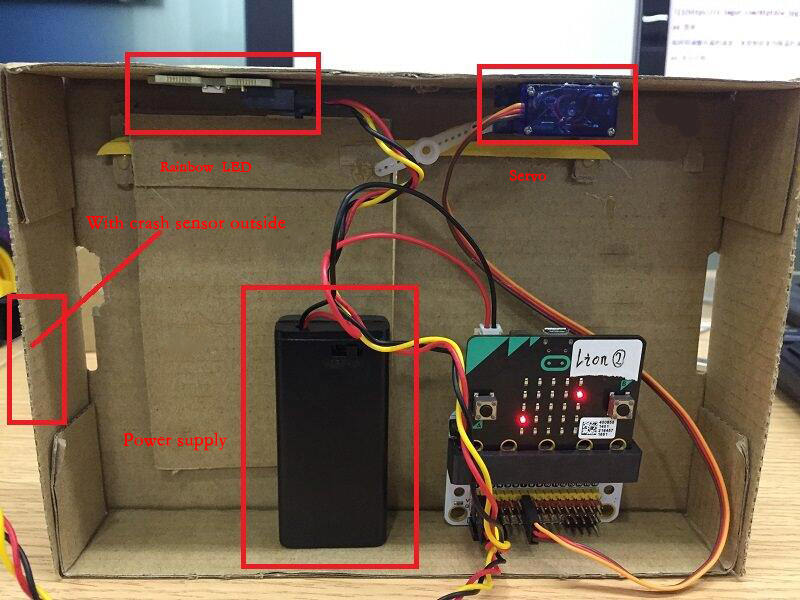

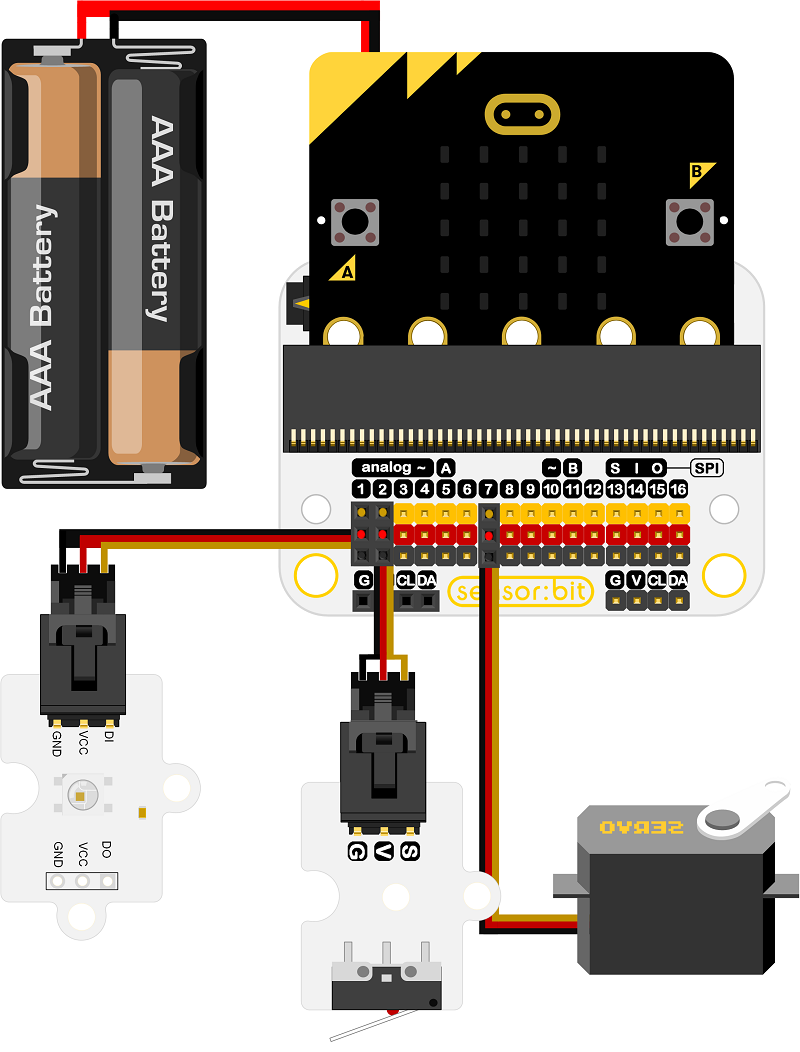

• Controling crash detect module using micro:bit and receive crash signal.The micro:bit will control servo to open the door with light up when it received signal.

Step 1

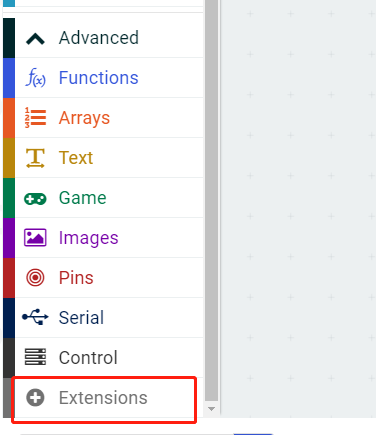

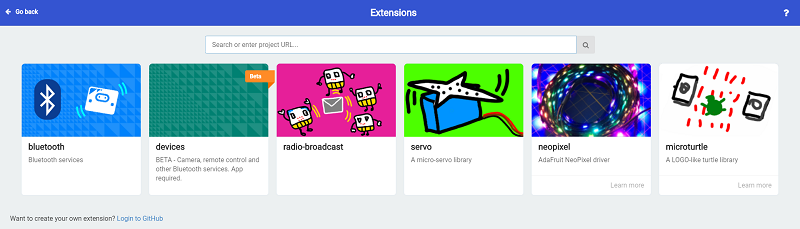

Go to MakeCode page, click Advanced in the code block and click on Extensions.

We need to add a new codebase for programming of smart home. Finding “Add Package” in the bottom of code block and click it. Then a message box will show up, search “smart home”， and download this new codebase.

Note：If there is a hint says some codebase will be deleted because of incompatibility. Don’t worry. You could go ahead as the hint or build a new item in item menu bar.

Step 2

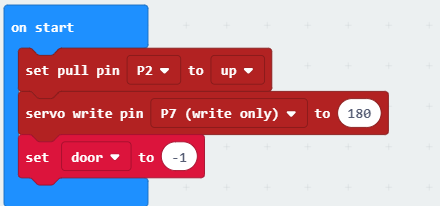

Drag on start from Basic and snap into set pull pin P2 to up.

Drag servo write pin from Pin, choose P7, set P7 to 180° and set door to -1 for closing the door。

Step 3

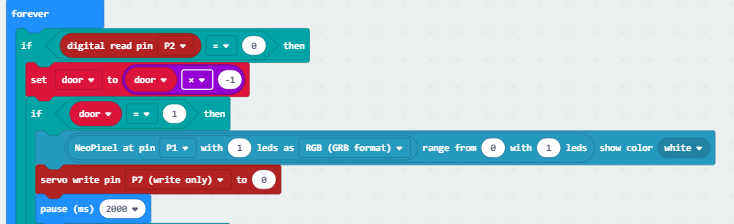

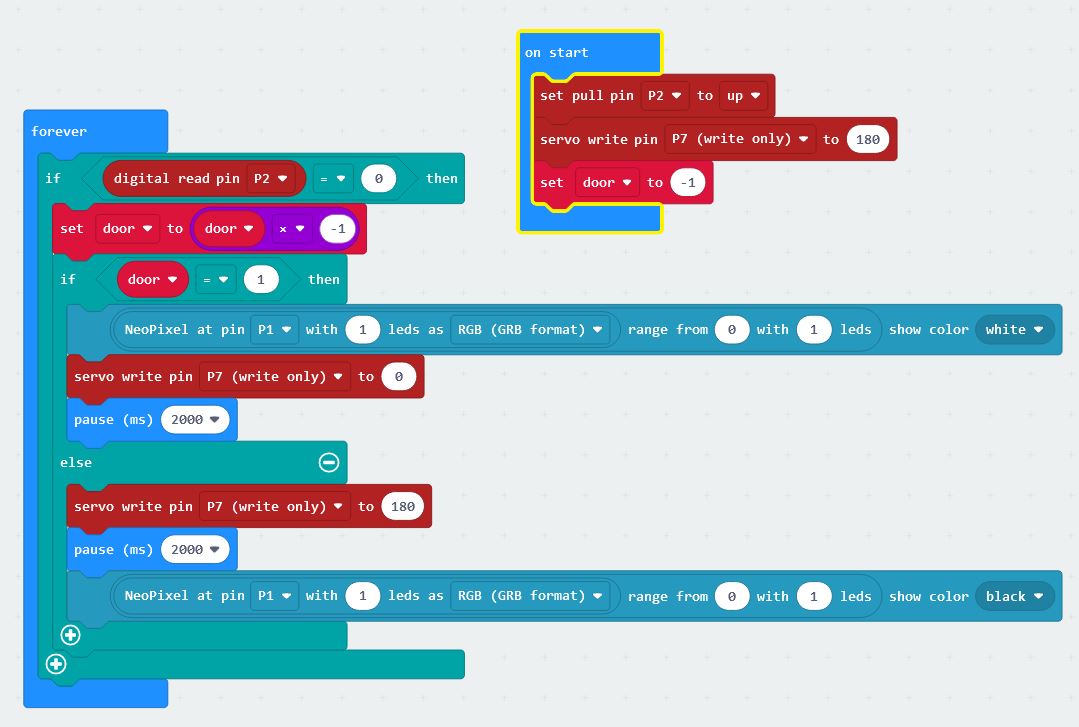

If digital read P2, the door variables will be contrary.If door variables is true, rainbow LED shows white, servo turns 0 °with door opens and pause 2 seconds.

Step 4

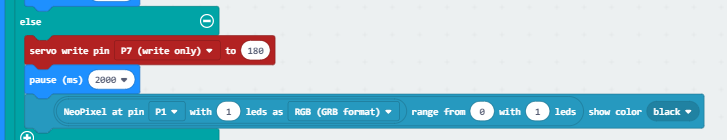

If door variables is false, servo turns 180° with door closes, pause 2 seconds and the rainbow LED off.

Programming

Make code：https://makecode.microbit.org/_2J3VR42c29cw

You also could directly download program visit website as below:
